Does an HDMI Splitter Reduce Quality? The Truth About 4K Splitting

The short version: HDMI is a digital signal, and a good HDMI splitter should not degrade the picture — a 4K frame going in comes out as the same 4K frame on both outputs. The reason people do see quality drops after adding a splitter almost always comes down to one of three things: the splitter can't handle the bandwidth of your source, the way it negotiates capabilities with your two displays forces a lower resolution, or the copy-protection handshake fails somewhere in the chain. This guide walks through each of those, why they happen, and how to pick a splitter that actually passes 4K cleanly.

TL;DR

• HDMI is digital, not analog — a properly-spec'd splitter passes the signal bit-for-bit, so there's no “signal loss” the way there was on old coaxial splitters.
• Quality drops when three things go wrong: insufficient bandwidth (an HDMI 1.4 splitter can't do 4K@60 Hz), an EDID handshake that picks the lowest-resolution display as the ceiling, or an HDCP mismatch that either blocks or downgrades the picture.
• For 4K, look for: HDMI 2.0 (18 Gbps) or 2.1 (48 Gbps), HDCP 2.2 or 2.3, HDR passthrough, and an EDID management option.
• Passive splitters split power in half — often fine for short 1080p runs, but shaky for 4K or long cables. For anything serious, use a powered (active) splitter.
• A splitter mirrors, it doesn't extend. Two displays behind one splitter show the same picture — always. Extending a desktop across two monitors needs a different device.

The short answer: does an HDMI splitter reduce quality?

By itself, a splitter that's rated for your source's resolution, refresh rate, and colour depth will not visibly reduce quality. HDMI transmits a stream of digital packets — the splitter's job is to copy those packets onto two (or four, or eight) output ports. There's no “signal” being physically thinned out the way there was on the analog RF splitters used for cable TV in the 1990s.

What can and does happen is that the splitter, the cables, or the two connected displays impose their own limits on the pipeline. When a downstream device can't handle what the source is offering, the source often falls back to a lower resolution or refresh rate — or to no picture at all. That fallback is what people are seeing when they say “the splitter hurt my quality.”

How an HDMI splitter actually handles the signal

Every splitter is doing three jobs at once:

1. Duplicating the video/audio stream from the one input to all outputs.
2. Managing the EDID handshake — the short conversation where a source device (Blu-ray player, console, laptop) asks each display what resolutions, refresh rates, HDR formats, and audio codecs it supports. Extron's EDID reference is the clearest pro-AV explanation of why this matters.
3. Passing through the HDCP encryption chain — the copy-protection handshake that protected content (4K streaming, UHD Blu-ray) requires between every device in the signal path.

The signal duplication itself is essentially perfect for a digital stream. Where things go wrong is jobs 2 and 3 — and, on cheaper units, in job 1's power budget.

Passive vs powered (active) splitters

A passive splitter has no external power. It splits the electrical signal from the source across two outputs — meaning each output effectively receives half the signal strength. That can work for a short 1080p run to two nearby displays, but the moment you push 4K, HDR, or long cables into the mix, the leftover signal on each leg is often too weak for the downstream display to lock onto. Cable Chick's active-vs-passive explainer covers this trade-off in plain language.

An active (powered) splitter plugs into the wall (or a USB-C power source). It regenerates the digital signal for each output at full strength, and it can also actively manage the EDID and HDCP handshakes. For any modern setup — 4K sources, HDR, gaming consoles, or cable runs beyond a few feet — a powered splitter is the right default.

Rule of thumb: if a splitter has more than two outputs, or claims 4K support, or costs less than about US $15 as a “passive 4K” unit, treat the marketing skeptically. Real 4K passthrough almost always needs power.

Three things that actually reduce your quality

1. Bandwidth mismatch — the splitter can't carry what the source is sending

Every HDMI version has a bandwidth ceiling. According to the HDMI Forum's specification pages, HDMI 2.0 tops out at 18 Gbps and HDMI 2.1 at 48 Gbps. Uncompressed 4K@60 Hz with HDR needs the full 18 Gbps of HDMI 2.0; 4K@120 Hz or 8K@60 Hz needs the higher headroom of HDMI 2.1.

If you feed a 4K@60 Hz source into a splitter certified only for HDMI 1.4, the splitter will negotiate downward — you might see 4K@30 Hz, or 1080p, or nothing at all. The picture that reaches your TV isn't “lossy”; it's simply not the resolution you thought you were sending. Check the splitter's rated bandwidth (Gbps) and maximum resolution + refresh rate together — a spec sheet that only says “4K support” without a refresh rate is a red flag.

2. EDID handshake — your best display gets held back by your worst

Every HDMI display has an EDID block: a small chunk of data listing the resolutions, refresh rates, colour spaces, HDR formats, and audio codecs it can accept. When you connect a source directly to a display, the source reads the EDID and outputs the best format both can share.

Add a splitter, and the source now has to reconcile two EDID blocks. Different splitters do this differently, and the difference is significant. Extron explains the mismatch problem succinctly: when a PC (or any source) sees multiple displays with different native resolutions, and can only read one EDID at a time, the output ends up mismatched with the other display — resulting in worse image quality or no image at all.

What splitters do about it:

• “Copy from output 1”: the splitter forwards whichever display is on port 1. Both displays then get output 1's preferred format. This works well when the two displays are similar.
• “Lowest common denominator”: the splitter reads both EDIDs and reports the format both can handle. Reliable, but caps your 4K TV at 1080p if the other output is a 1080p projector.
• Manual EDID selection: better splitters have a small switch or button that lets you pick a fixed EDID profile — for example, forcing “4K@60 Hz HDR” regardless of what's connected. This is the option to prioritise if your two displays differ meaningfully.

If you buy a splitter without any EDID management and your two displays aren't identical, the “quality drop” you notice is almost always this negotiation, not the splitter's electronics.

3. HDCP chain failure — copy protection gets confused

HDCP (High-bandwidth Digital Content Protection) is a copy-protection layer originally developed by Intel. Every device that carries protected content — 4K streaming from Netflix / Disney+, UHD Blu-ray, cable and satellite 4K channels — needs to complete a running handshake with every other device in the chain. AWOL Vision's HDCP guide puts the rule bluntly: the chain is only as strong as its weakest link. If any device in the path — source, splitter, receiver, or display — isn't compliant with the required HDCP version, the whole chain refuses to pass protected content.

For 4K streaming and UHD Blu-ray, that means you need HDCP 2.2 (or 2.3) support on every link. An HDMI splitter that only supports HDCP 1.4 will handshake fine for 1080p, but on a 4K protected stream you'll get one of three failure modes:

• A black screen with an “HDCP error” or “HDCP unauthorized” message.
• The source silently drops to 1080p to complete the handshake at a lower HDCP version.
• Audio drops out even though the picture is present, or vice versa.

None of those is a “bad splitter” in the noise-and-interference sense. They're a splitter that's out of spec for what the source is trying to send. For 4K use, buy an HDMI 2.0-or-newer splitter that explicitly lists HDCP 2.2 or 2.3 compliance on its spec sheet.

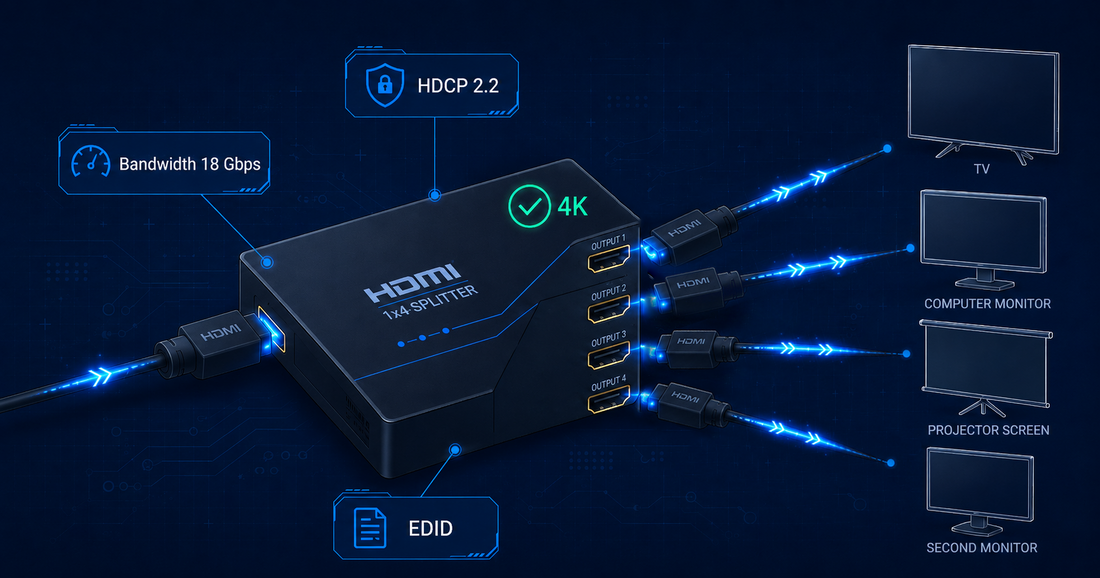

4K HDMI splitter: what a spec sheet needs to say

If a splitter's product page just says “supports 4K,” treat that as a marketing claim, not a spec. A real 4K-capable splitter will explicitly list all of these:

• HDMI 2.0 (18 Gbps) or HDMI 2.1 (48 Gbps) — HDMI 2.1 is required for 4K@120 Hz or 8K.
• 4K resolution at a stated refresh rate — 4K@60 Hz is the modern floor; 4K@30 Hz is a compromise fine for movies but limiting for gaming.
• HDCP 2.2 or 2.3 compliance.
• HDR passthrough — HDR10 at minimum, ideally with HDR10+, Dolby Vision, and HLG called out.
• Chroma subsampling — for 4K@60 Hz with HDR, 4:4:4 or 4:2:2 is preferable to 4:2:0.
• External power — a wall adapter or USB-C input.
• EDID management — a switch or DIP for fixed EDID profiles is the difference between “works everywhere” and “works with these two specific TVs.”

A splitter that meets all of the above will not visibly reduce quality on a 4K signal. A splitter that meets fewer of them, or that lists only a subset, is where you should expect the compromises described above to show up.

An important clarification: a splitter mirrors, it doesn't extend

This is the most common misunderstanding, so it's worth stating explicitly: an HDMI splitter mirrors the same image to every output. It does not, and cannot, give you an extended desktop across two monitors. To your source computer, a splitter looks like a single display — the two physical monitors behind it are invisible to the OS. Tom's Hardware's forum is full of users discovering this the hard way. Apple's own community thread makes the same point for macOS: the Mac sees the splitter as one display and offers no extended-desktop option.

If you actually want two monitors showing different content — one for your document, one for a browser — you need one of:

• A second video output on your computer (a second HDMI or DisplayPort port, or Thunderbolt / USB-C with DP Alt Mode).
• A docking station or hub that uses Multi-Stream Transport (MST) or DisplayLink to drive two independent outputs from a single port. Note that macOS does not support DisplayPort MST, which is why many Windows-compatible USB-C dual-HDMI adapters revert to mirror mode on a Mac.
• A USB display adapter with driver-level virtual display support.

If your starting point is a laptop specifically, our step-by-step on how to connect two monitors to a laptop walks through each of those options with the Windows and macOS caveats spelled out.

An HDMI splitter is the correct tool when you want the same image on two screens — a Blu-ray to both a TV and a bedroom TV, a laptop to a room's main screen and a confidence monitor, a security camera feed shown in multiple locations. It's the wrong tool for any workflow that needs different content on each screen.

What to look for when buying an HDMI splitter

Before matching a specific product to your setup:

• Match to your highest-spec device. If your source is a PS5 outputting 4K@120 Hz HDR, you need an HDMI 2.1 splitter with HDCP 2.3. Buying to your lowest-spec display leaves you no headroom to upgrade.
• Confirm the number of outputs you actually need. 1x2 splitters are the cheapest, most reliable, and most common. 1x4 and 1x8 units exist and are useful for classrooms or signage, but they demand more from the power supply and the EDID logic — quality control varies more at those port counts.
• Cables are part of the system. Certified Premium High Speed HDMI cables (for 4K@60 HDR) or Ultra High Speed HDMI cables (for 4K@120 or 8K) are what the HDMI Forum requires to actually carry the rated bandwidth. Long, uncertified cables from either the splitter's input or its outputs are a common hidden cause of “splitter problems.”
• Avoid HDCP-stripping listings. Some products advertise themselves as bypassing HDCP; using them to copy protected content is a legal grey area and outside the scope of a normal display setup. Prefer splitters that pass HDCP cleanly.

FAQ

Will an HDMI splitter reduce 4K quality?

Not if the splitter is properly spec'd. An HDMI 2.0 (18 Gbps) or HDMI 2.1 (48 Gbps) splitter with HDCP 2.2/2.3 and HDR passthrough will send the same 4K frame to both outputs. Quality drops usually trace back to bandwidth, EDID negotiation, or HDCP chain failures — not the splitter's electronics.

Can an HDMI splitter extend my display to two monitors?

No — a splitter mirrors the same image to every output. For an extended desktop where each monitor shows different content, you need a second video output on your computer or a docking hub that supports Multi-Stream Transport or DisplayLink.

Why does my HDMI splitter show “HDCP error” or a black screen on 4K content?

The splitter isn't compliant with the HDCP version your source is demanding. Modern 4K streaming and UHD Blu-ray require HDCP 2.2 or 2.3 on every device in the chain — source, splitter, and both displays. Upgrade to a splitter that explicitly lists HDCP 2.2/2.3 compliance.

Do I need a powered (active) HDMI splitter for 4K?

For 4K, or for any splitter with more than two outputs, or for cable runs beyond a few feet — yes. Passive splitters divide the signal power across outputs and often can't drive both displays reliably at 4K.

Why does one of my two displays go blank when I use a splitter?

Most commonly an EDID mismatch: the splitter is offering both displays a format that only one can handle. Look for a splitter with a manual EDID switch, or make sure both displays support the same maximum resolution and refresh rate.

Is a 1x2 splitter better than a 1x4?

Not better, but simpler. Two-output splitters have easier power and EDID management, so they're usually the more reliable choice when you only need to feed two displays. Only step up to 1x4 or 1x8 when the number of screens genuinely requires it.

Will a splitter work if the two TVs have different resolutions?

Yes, but the output will normally be capped at the lower display's capability unless the splitter has EDID management that lets you force a specific profile. A 4K TV plus a 1080p TV without EDID control will typically run both at 1080p.
